MSH41515 Protos 380 EVO V2 KIT （Red）
- Helicopters
MSH41515 Protos 380 EVO V2 KIT （Red）
$ 369.00
Introduction

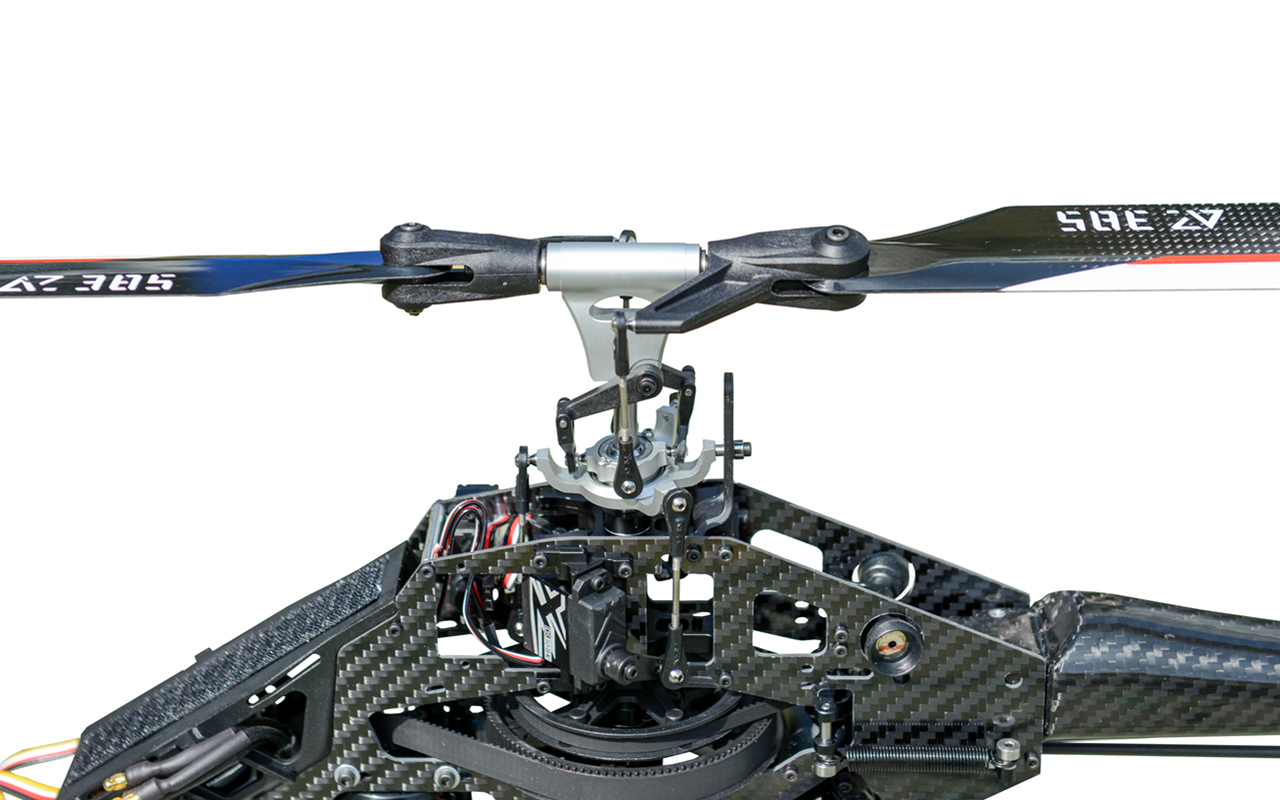

Protos380EVO V2 include new frame(MSH41233). Rigid tail blades(MSH41181-1).
Feature:
1.New servo layout for easier maintenance
2.1.5mm full carbon frame
3.Metail servo frame
Specification:
Main Blade Length: 325-380mm
Tail Blade Length: 68mm
Length: 800mm
Height: 235mm
Width: 110mm
Main Gear: 120T
Tail Gear: 22T
Auto Gear: 94T
Tail Drive Gear Ratio: 4.27
Estimated RTF Weight: 1300g (Depending on Setup)
Suggested Max Battery Dimensions: 115x40x35mm
Electronic Requirements:
-
Cyclic Servos: Micro size 23mm
-
Tail Servo: Micro size 23mm OR Mini size 35mm
-
Typical Speed Controller:
-
General and 3D Flight: Kontronik Koby 70, YGE 60 LV, CC Lite 75,Hobbywing 50A, Hobbywing 60A V4
-
General and Extreme Flight: Kontronik Koby 90 - Jive 80LV , YGE 90 LV, Hobbywing 80A V4
-
Typical Motor
-
28XX/30XX/32XX Series w/5mm Pinion 800-1000kV
2.1.5mm full carbon frame
3.Metail servo frame
Specification:
Main Blade Length: 325-380mm
Tail Blade Length: 68mm
Length: 800mm
Height: 235mm
Width: 110mm
Main Gear: 120T
Tail Gear: 22T
Auto Gear: 94T
Tail Drive Gear Ratio: 4.27
Estimated RTF Weight: 1300g (Depending on Setup)
Suggested Max Battery Dimensions: 115x40x35mm
Electronic Requirements:
- Cyclic Servos: Micro size 23mm
- Tail Servo: Micro size 23mm OR Mini size 35mm
- Typical Speed Controller:
-
General and 3D Flight: Kontronik Koby 70, YGE 60 LV, CC Lite 75,Hobbywing 50A, Hobbywing 60A V4
- General and Extreme Flight: Kontronik Koby 90 - Jive 80LV , YGE 90 LV, Hobbywing 80A V4
- Typical Motor
- 28XX/30XX/32XX Series w/5mm Pinion 800-1000kV
